Test of reprojection

In this notebook we will test our reprojection method on 2 frames taken with the Dragonfly instrument. The goal of this notebook is to demonstrate that the results are equivalent and that we gain a speedup using our methodology.

I will also be using astroscrappy to make sure that all cosmic rays and hot pixels are removed from the data before passing it to the reprojection code.

!pip install astroscrappy

Collecting astroscrappy
  Downloading astroscrappy-1.2.0-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (3.6 kB)
Requirement already satisfied: astropy in /home/carterrhea/Documents/dfreproject/.venv/lib/python3.10/site-packages (from astroscrappy) (6.1.7)
Requirement already satisfied: numpy in /home/carterrhea/Documents/dfreproject/.venv/lib/python3.10/site-packages (from astroscrappy) (2.2.3)
Requirement already satisfied: pyerfa>=2.0.1.1 in /home/carterrhea/Documents/dfreproject/.venv/lib/python3.10/site-packages (from astropy->astroscrappy) (2.0.1.5)
Requirement already satisfied: astropy-iers-data>=0.2024.10.28.0.34.7 in /home/carterrhea/Documents/dfreproject/.venv/lib/python3.10/site-packages (from astropy->astroscrappy) (0.2025.3.10.0.29.26)
Requirement already satisfied: PyYAML>=3.13 in /home/carterrhea/Documents/dfreproject/.venv/lib/python3.10/site-packages (from astropy->astroscrappy) (6.0.2)
Requirement already satisfied: packaging>=19.0 in /home/carterrhea/Documents/dfreproject/.venv/lib/python3.10/site-packages (from astropy->astroscrappy) (24.2)
Downloading astroscrappy-1.2.0-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (1.8 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.8/1.8 MB 7.9 MB/s eta 0:00:00a 0:00:01
Installing collected packages: astroscrappy
Successfully installed astroscrappy-1.2.0

from astropy.io import fits
from astropy.wcs import WCS
import time
from dfreproject.reproject import calculate_reprojection
from matplotlib import pyplot as plt
import cmcrameri.cm as cmc
from reproject import reproject_interp
from astroscrappy import detect_cosmics

We now read in the data. Please update this with your own data if you wish to test it locally.

light1 = './data/Atik1442426-0035_0032_light.fits'
light2 = './data/Atik1442428-0045_0032_light.fits'

light1_hdu = fits.open(light1)[0]
light2_hdu = fits.open(light2)[0]
light1_wcs = WCS(light1_hdu.header)

light2_hdu.data = detect_cosmics(light2_hdu.data, readnoise=1, gain=0.04)[1]  # We know the effective gain for our detector

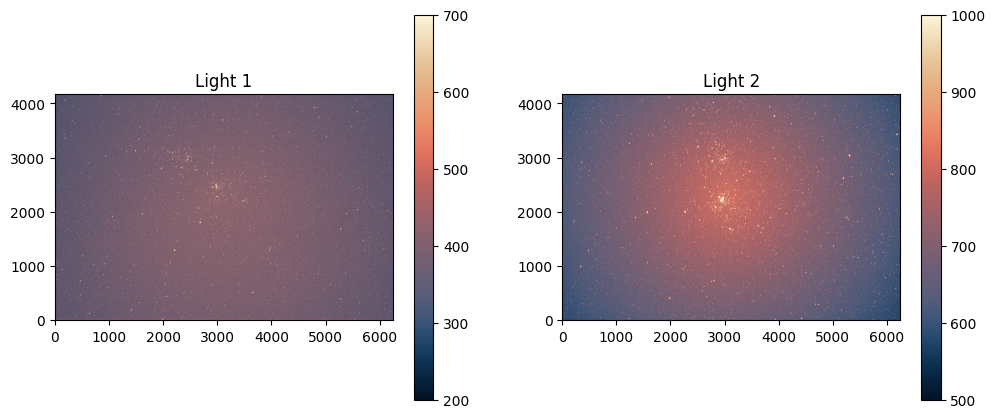

Let’s go ahead and visualize these two frames.

fig, axs = plt.subplots(1, 2, figsize=(12, 10))

im = axs[0].imshow(light1_hdu.data, origin='lower', cmap=cmc.lipari, vmin=200, vmax=700)
axs[0].set_title(f"Light 1")
plt.colorbar(im, ax=axs[0], shrink=0.5)

im = axs[1].imshow(light2_hdu.data, origin='lower', cmap=cmc.lipari, vmin=500, vmax=1000)
axs[1].set_title(f"Light 2")
plt.colorbar(im, ax=axs[1], shrink=0.5)

plt.show()

Between these two frames there is some rotation (about 90 degrees) and slight translation.

Reprojection

Now let’s go ahead and do the reprojections using a cubic reprojection.

start = time.time()
reprojected_source_torch = calculate_reprojection(source_hdus=light2_hdu, target_wcs=light1_wcs,  shape_out=(light1_hdu.data.shape), order="bilinear")
torch_time = time.time()-start
print(f"total time: {torch_time}")

total time: 1.4365441799163818

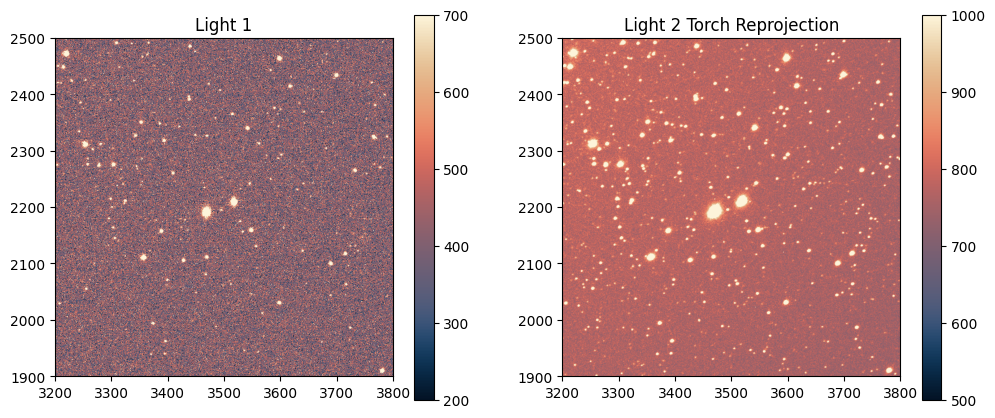

fig, axs = plt.subplots(1, 2, figsize=(12, 10))

im = axs[0].imshow(light1_hdu.data, origin='lower', cmap=cmc.lipari, vmin=200, vmax=700)
axs[0].set_title(f"Light 1")
axs[0].set_xlim(3200, 3800)
axs[0].set_ylim(1900, 2500)
plt.colorbar(im, ax=axs[0], shrink=0.5)

im = axs[1].imshow(reprojected_source_torch, origin='lower', cmap=cmc.lipari, vmin=500, vmax=1000)
axs[1].set_title(f"Light 2 Torch Reprojection")
axs[1].set_xlim(3200, 3800)
axs[1].set_ylim(1900, 2500)
plt.colorbar(im, ax=axs[1], shrink=0.5)

plt.show()

|As we can see the results are extremely similar. The differences are due to how the normalization is handled in our implementation versus reproject_interp.

start = time.time()
reprojected_source_reproj = reproject_interp(light2_hdu, light1_hdu.header,order='bilinear')[0]
reproject_time = time.time()-start
print(f"total time: {reproject_time}")

total time: 42.79414224624634

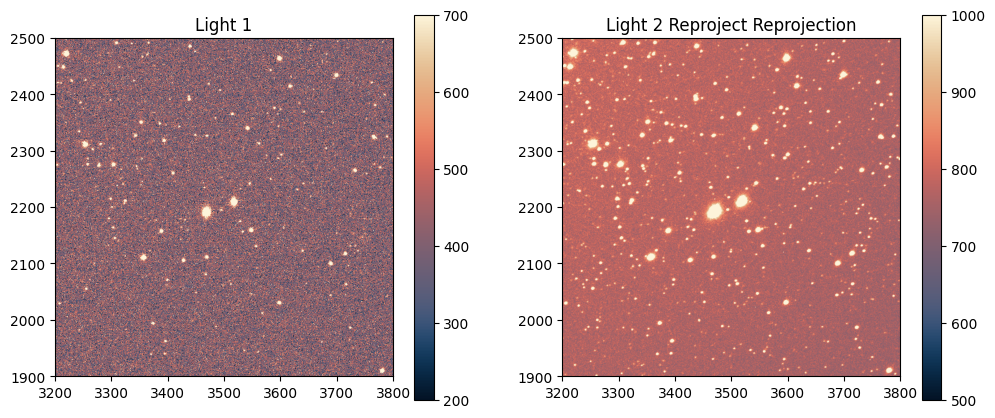

fig, axs = plt.subplots(1, 2, figsize=(12, 10))

im = axs[0].imshow(light1_hdu.data, origin='lower', cmap=cmc.lipari, vmin=200, vmax=700)
axs[0].set_title(f"Light 1")
axs[0].set_xlim(3200, 3800)
axs[0].set_ylim(1900, 2500)
plt.colorbar(im, ax=axs[0], shrink=0.5)

im = axs[1].imshow(reprojected_source_reproj, origin='lower', cmap=cmc.lipari, vmin=500, vmax=1000)
axs[1].set_title(f"Light 2 Reproject Reprojection")
axs[1].set_xlim(3200, 3800)
axs[1].set_ylim(1900, 2500)
plt.colorbar(im, ax=axs[1], shrink=0.5)

plt.show()

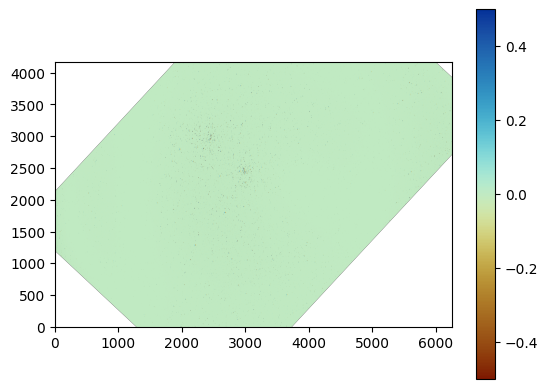

So we can see that the results look consistent accross the methods. Let’s go ahead and double check that by plotting out the residuals.

error = 100 * (reprojected_source_torch - reprojected_source_reproj)/reprojected_source_reproj
plt.imshow(error, origin='lower', cmap=cmc.roma, vmin=-0.5, vmax=0.5)
plt.colorbar()
axs[1].set_xlim(3200, 3800)
axs[1].set_ylim(1900, 2500)
plt.show()
